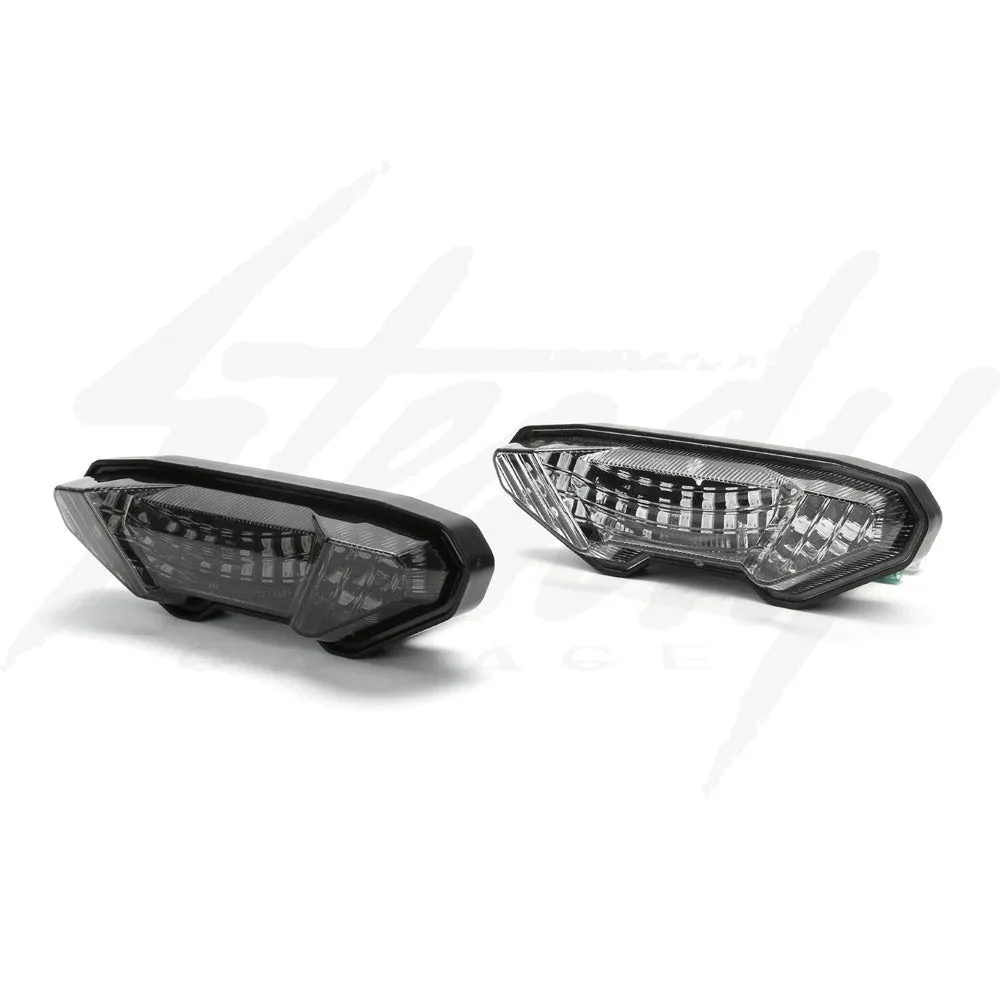

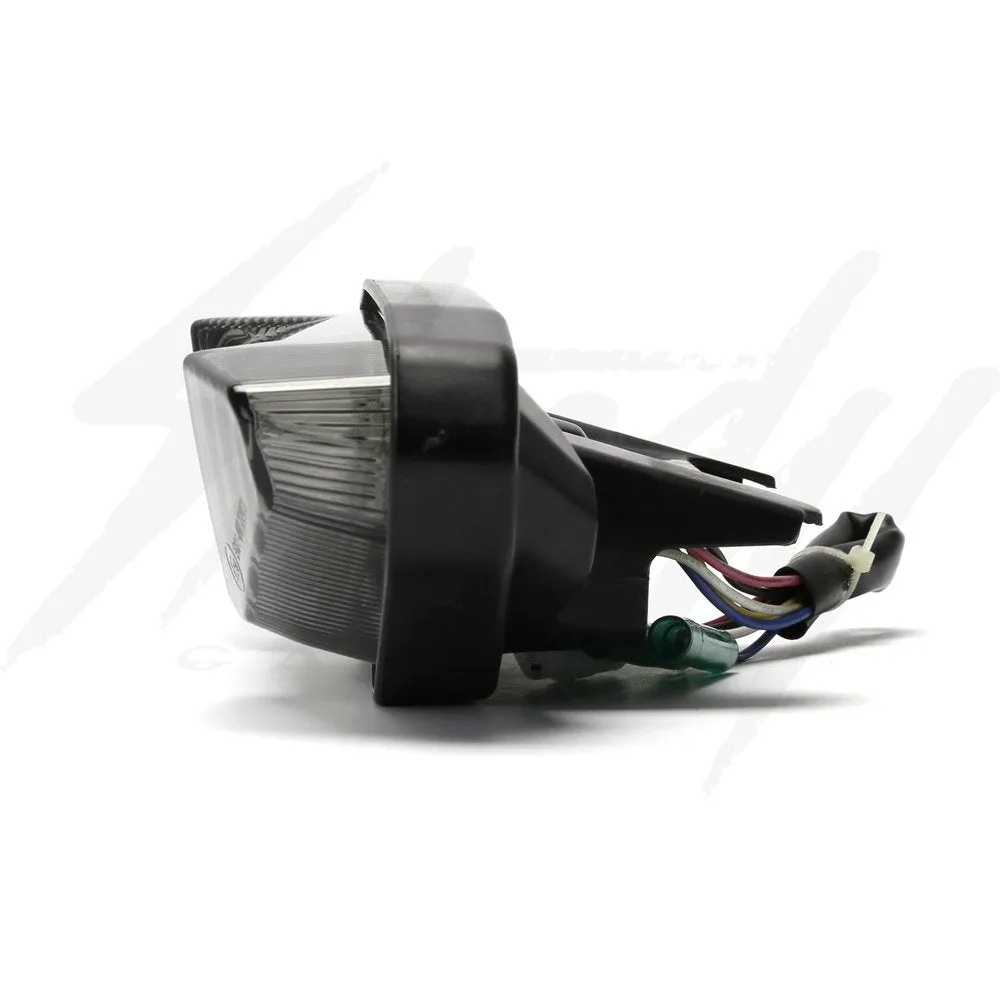

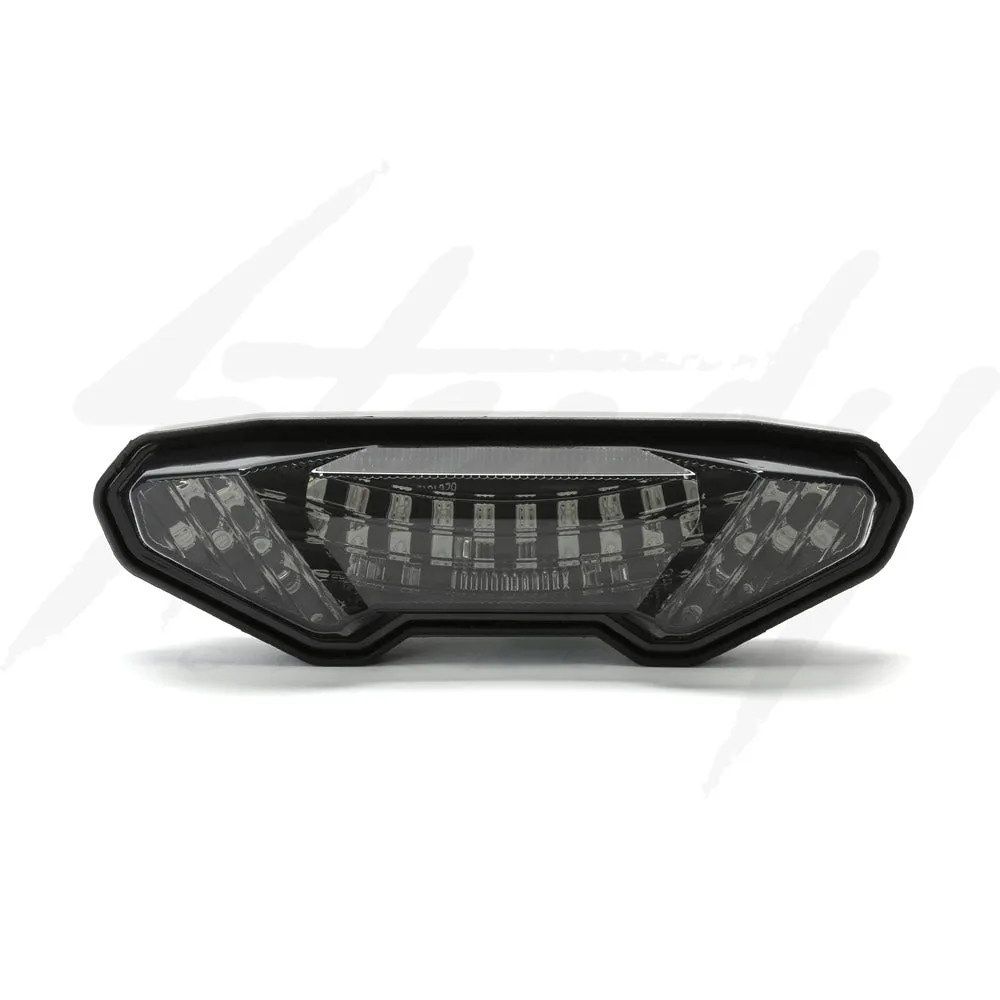

Chimera LED Tail Light kit for Honda Ruckus! Directly mount this under your Ruckus seat! Ready to install, completely plug and play!
Note:
- Trimming the large hoop tab under the seat is required in order for the bracket it fit.
- LED flasher relay is highly recommended for easier installation (PN: ETC-12VLF, sold separately, minor wiring is required for flasher relay installation)

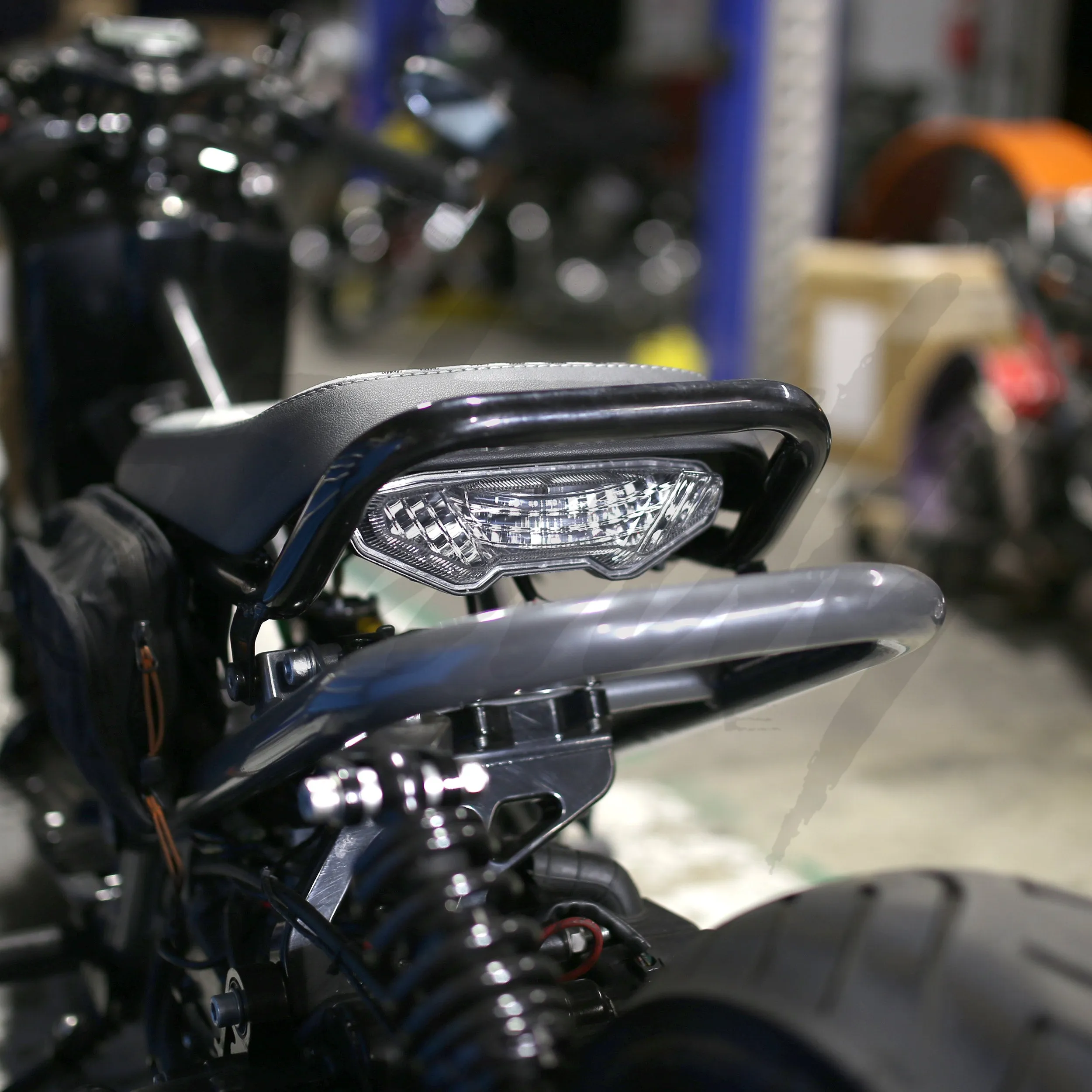

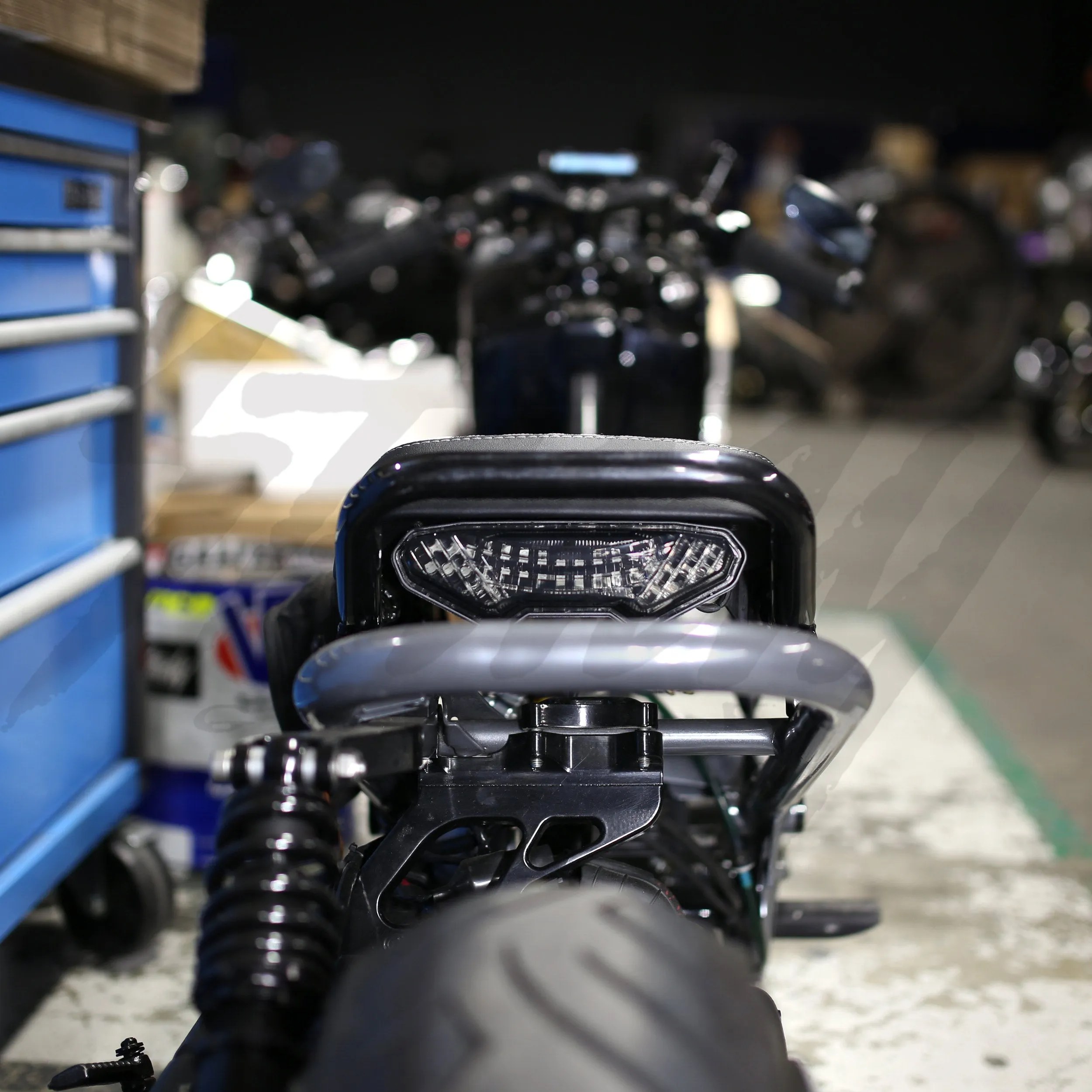

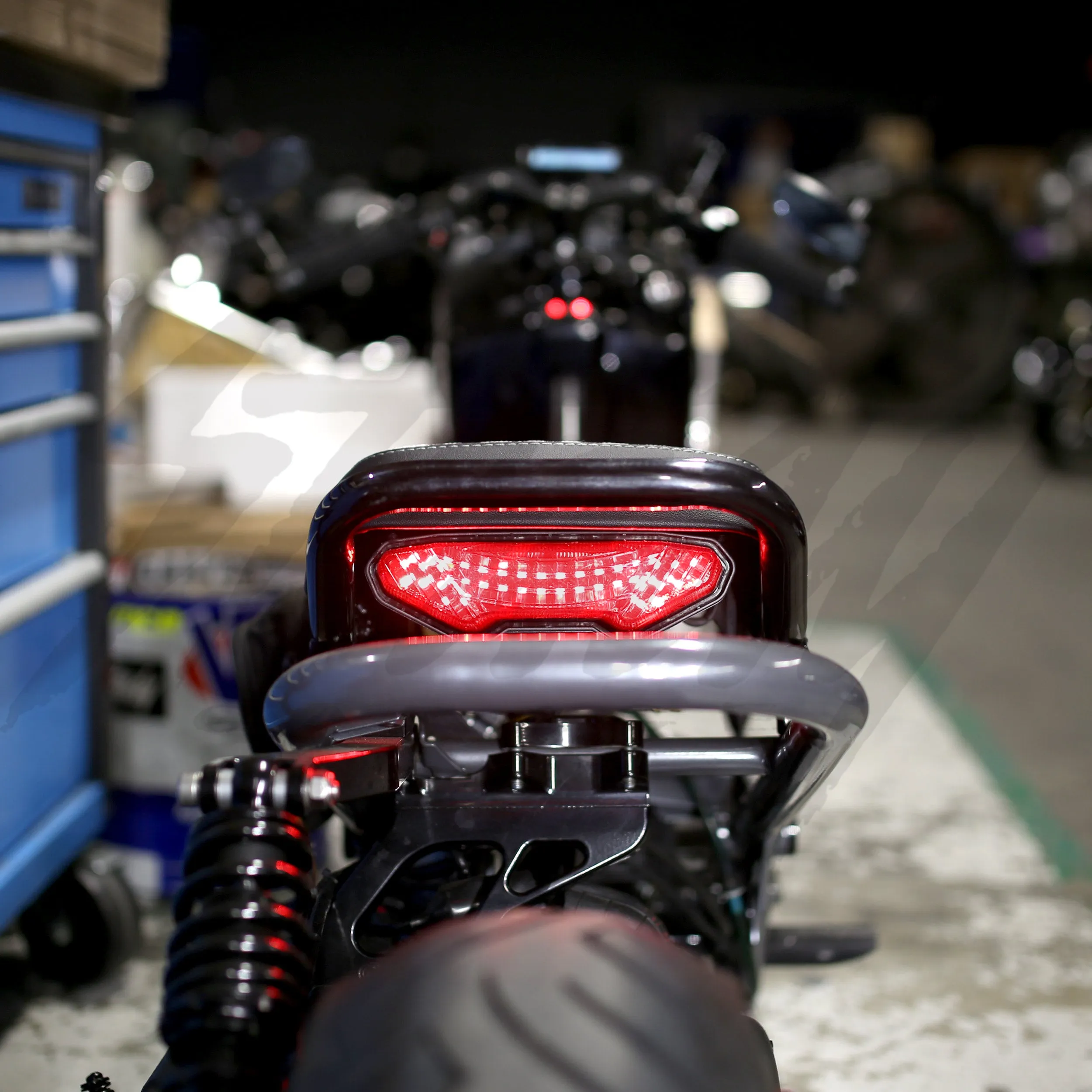

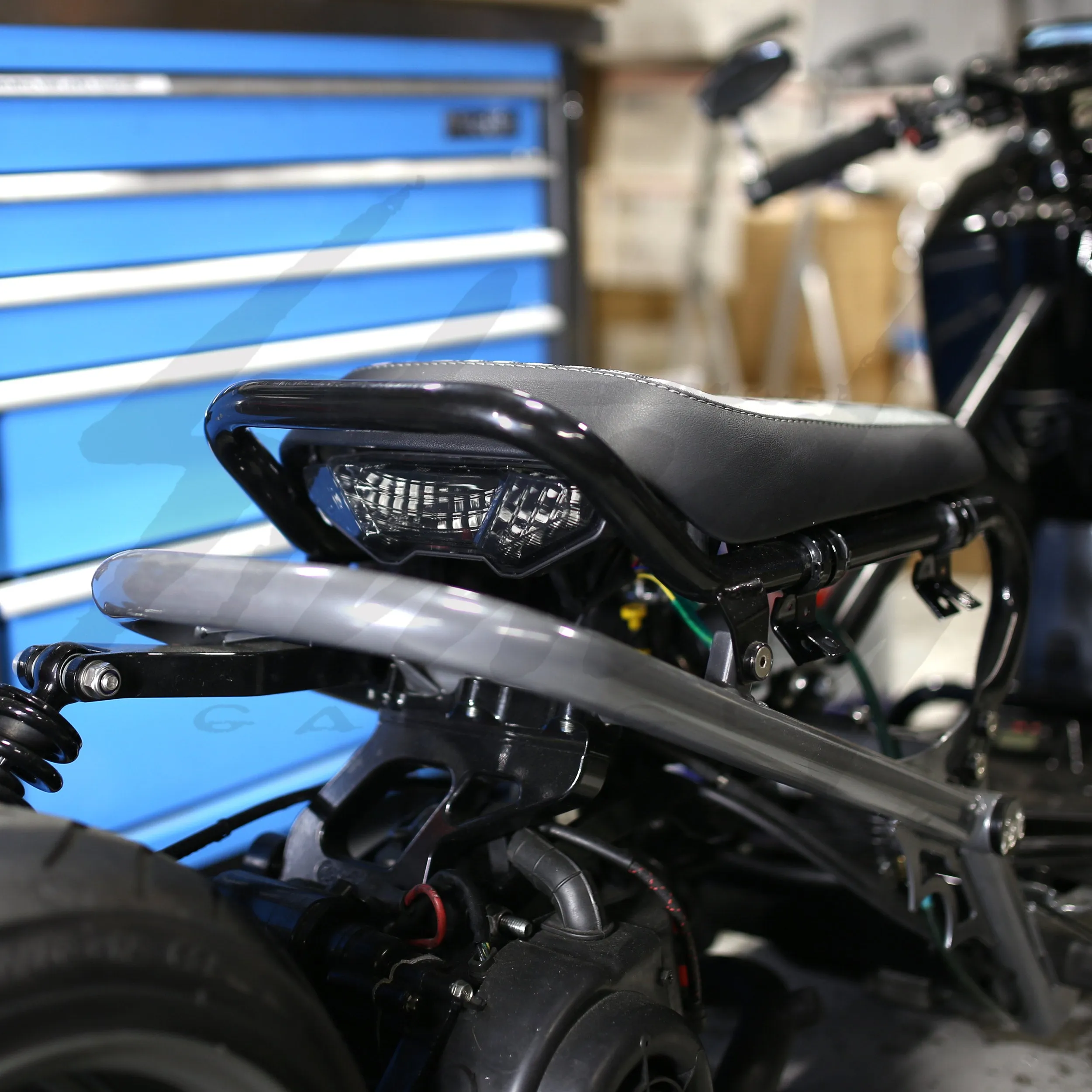

- This is the largest under seat light on the market, so it'll provide the most light output which is great for visibility, but it will be a tight fit when it's installed. When utilizing NCY, ATR, or OEM seat frames with the tail light assembly near the center, be aware that the right side of the tail light may come into contact with the seat frame upon opening. To address this, consider adjusting the tail light assembly towards the left side of the seat. While this may result in a slight off-center alignment, it ensures the seat can open and close without the tail light touching the seat frame. The slight off-center position will not be too noticeable. See the reference photo of the installed tail light.
Kit Content:

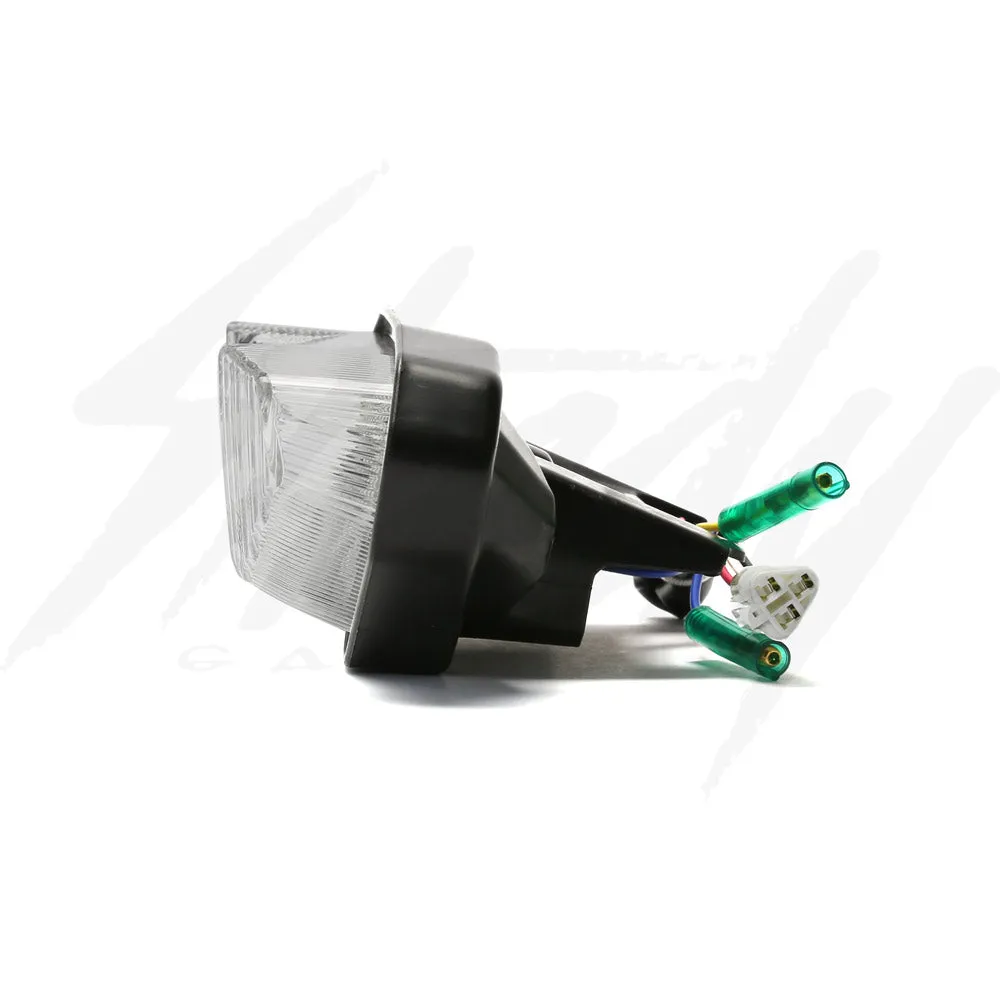

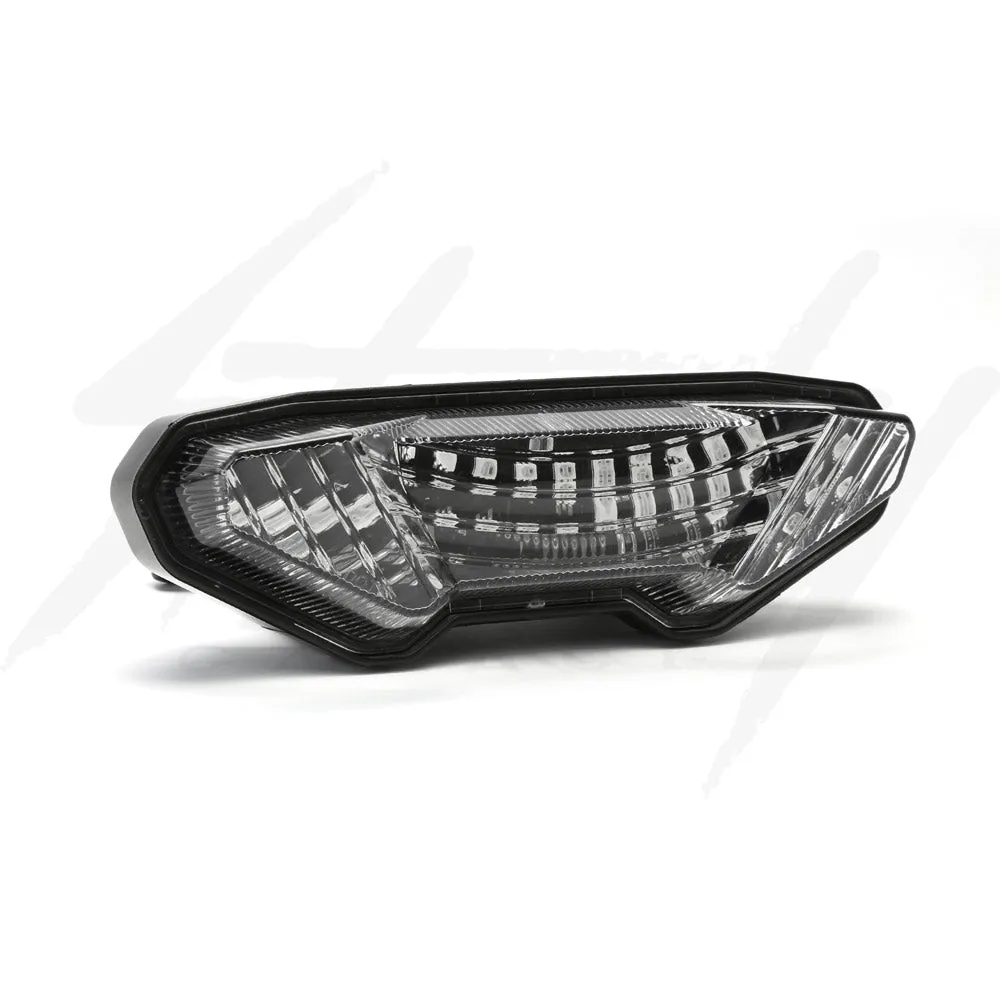

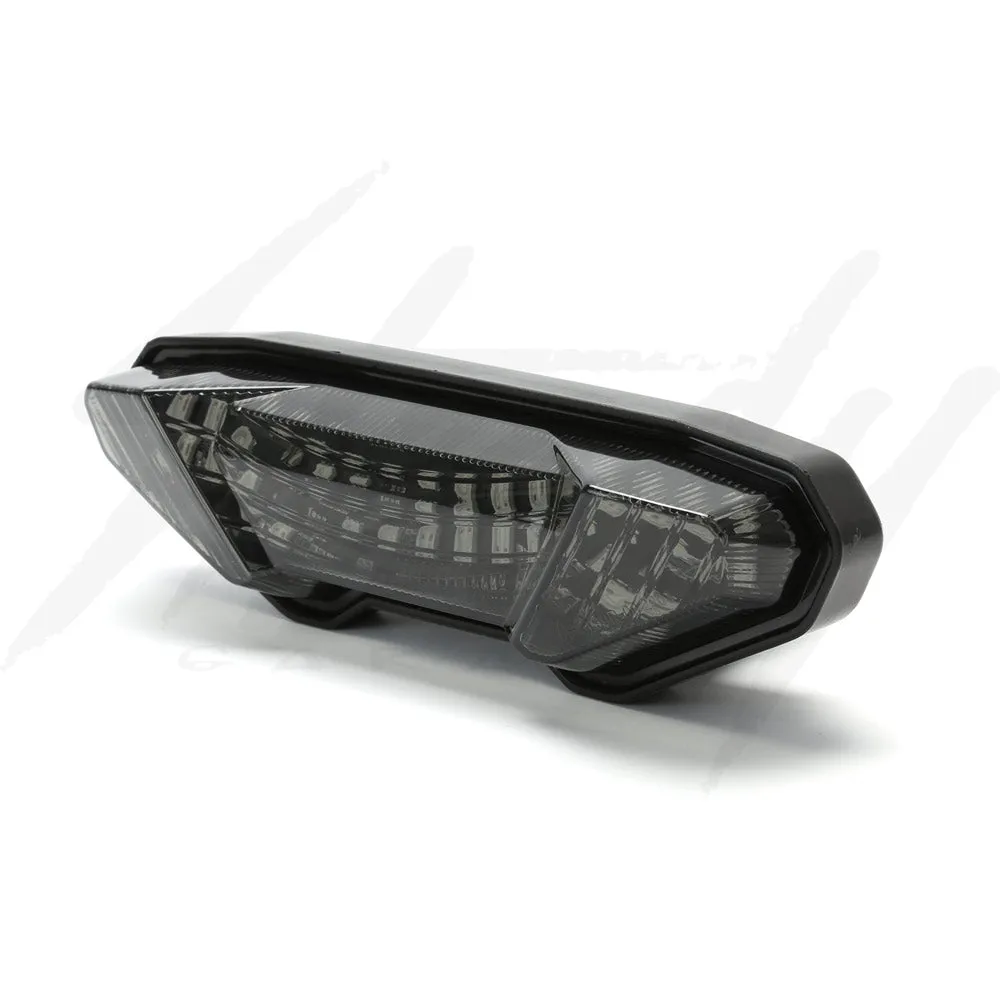

- Ultra bright LED integrated tail light, plug and play ready!
- Chimera Mounting Bracket
- Mounting hardware
Tail Light Features:

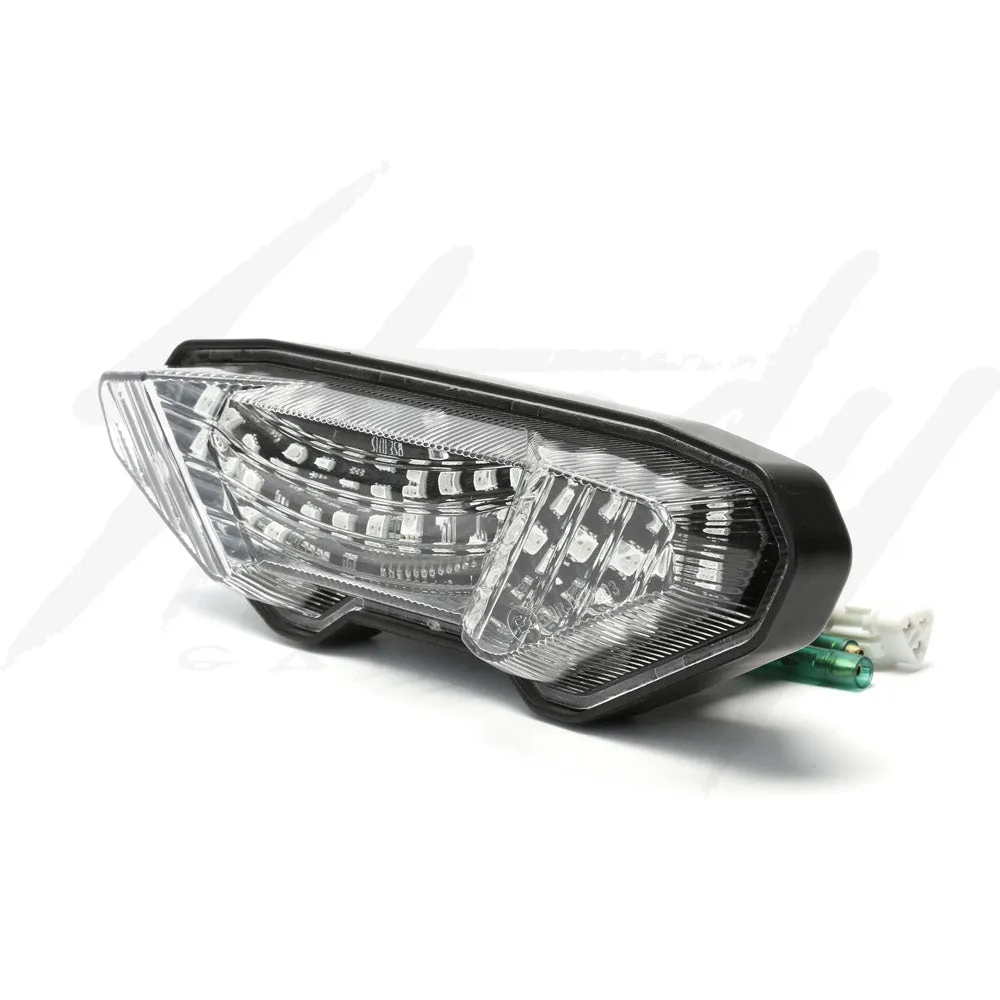

- 36 ultra bright dual mode red/yellow SMD LEDs for running/brake lights and turn signals
- NEW! Programmable features:
- ON/OFF Stop Alert
- ON/OFF Sequential signals
- Direct plug and play with bullet connectors already crimped on
- Resistors
- Stop Alert - utilizes 3 quick red flashes when brakes are applied initially
- Sequential alternating yellow LED turn signals
- Street Legal: N/A
- Warranty: 1 year
Designed with Stop Alert function added to increase motorist awareness when you are braking. Sequential LEDs flash in sequence in the direction you are turning or merging so there is no confusion which way you are going.
A microprocessor is use with an integrated circuit chip (IC) to control all the functions of park, brake, and sequential signals. All IC chips are micro soldered by machine to deliver consistent and reliable solder points.
