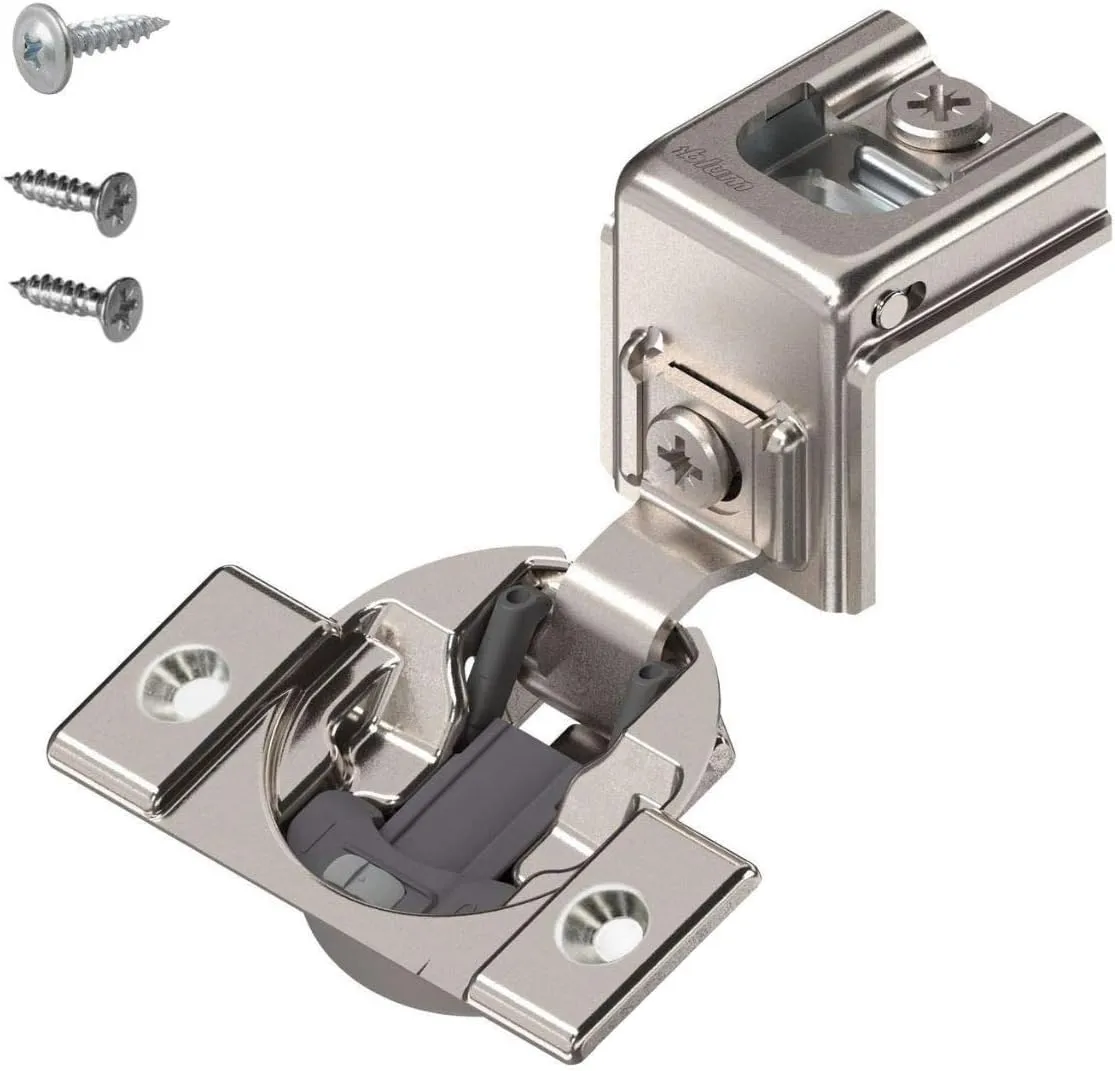

The Blum 39C355B.24 COMPACT BLUMOTION hinges were specifically designed for face frame cabinets. The soft close feature is built right into the hinge cup, and it can even be deactivated for small or light doors. With COMPACT BLUMOTION, doors close silently every time.

FEATURES

• Hinge Overlay: 1-1/2"
• Mounting Type: Screw-On
• 110 Degree Opening Angle
• BLUMOTION Integrated into the Hinge Cup
• Deactivation Switch for Small/Light Doors
• Interchangeable with Current COMPACT Hinges
• Three-Dimensional Adjustment - Side, Height, and Depth
• Overload Safety Feature - Even if you slam the door, you won't damage it. The door will still close softly for the life of the cabinet.
• One-Piece Wraparound Hinge
• 1/2 Inch (13mm) Cup Depth
• /- 1/8 Inch Height Adjustment
• /- 1/16 Inch Side Adjustment
• 3/32 Inch -1/32 Inch Depth Adjustment
• 3/4 Inch Maximum Door Thickness
• Cup Diameter: 35mm
• Boring Pattern: 45mm

Including:

• Blum Hinge with part# 39C355B.24
• Dexter Group branded screws.

Packed by:

• Packaged by Dexter Group.

Made in:

• Hinge made in: Austria
• Dexter Group screws are made in USA

Blum, Inc. is a #1 leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.
