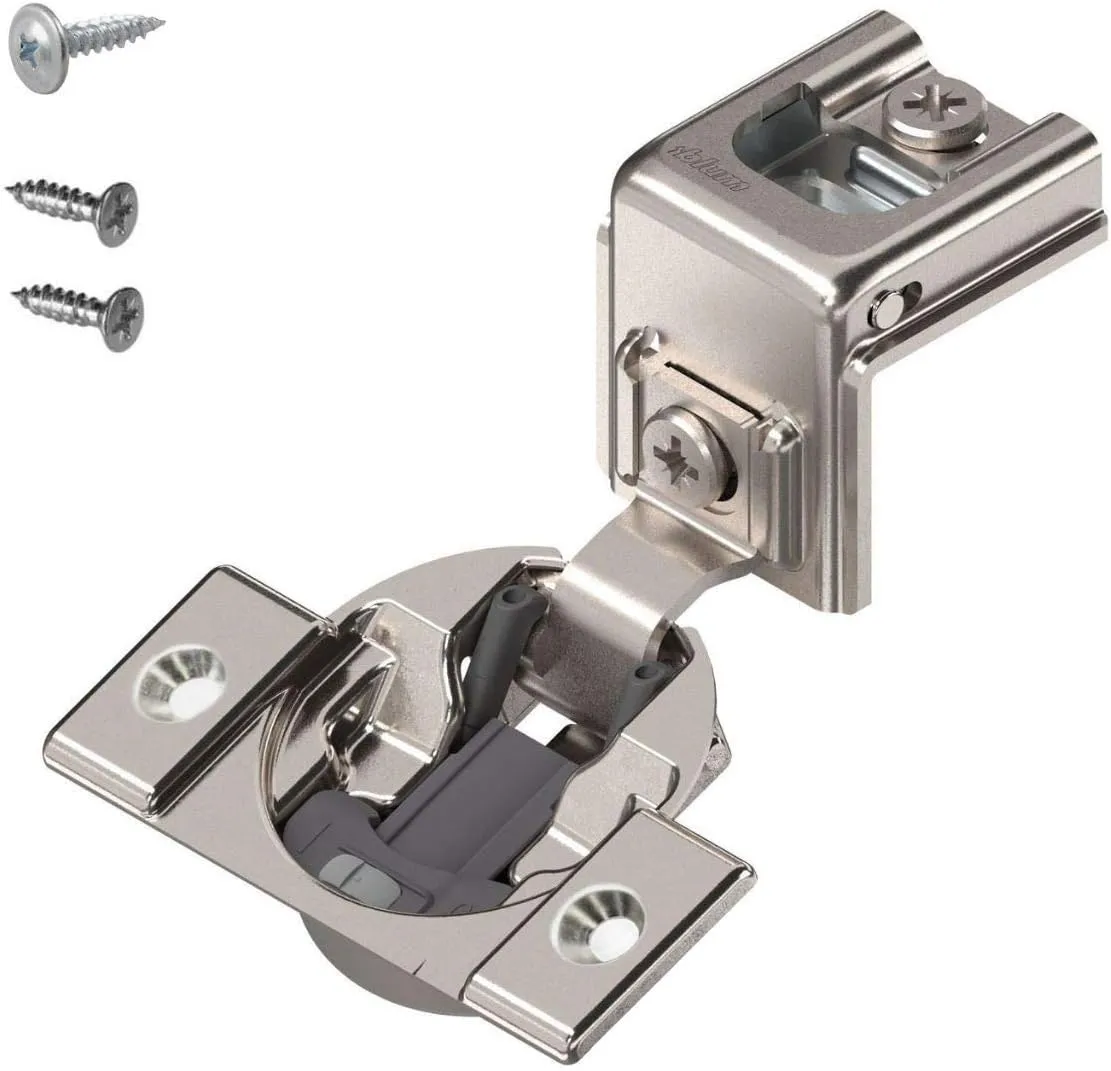

110° COMPACT BLUMOTION 39C Soft-Close Hinges For 1 5/16 Overlays. Part# 39C355B.21

• BLUMOTION soft close integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• One-piece wraparound hinge
• 1/2" cup depth
• Less minimum reveal
• /- 1/8" height adjustment
• /-1/16" side adjustment
• /- 3/32", - 1/32" cam depth adjustment
• 45mm boring pattern
• Overlay: 1 5/16
• Closing Type: Soft-Closing
• Mounting Style: Wrap
• Cup Depth: 13mm
• Cup Diameter: 35mm
• Closing mechanism: With spring
• Plate arm design and it's assembly: Wrap around, for pre-hanging
• Hinge cup material: Steel hinge cup , Nickel-plated
• Mounting type: Screw on

Included

• Blum Hinge(s) with 1 5/16 Overlay. Part # 39C355B.21
• "Dexter Group” Branded screw(s) for the mounting plate & door side.

Made in:

• Hinge made in: Austria
• Dexter Group screws are made in USA

Blum, Inc. is a leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.
